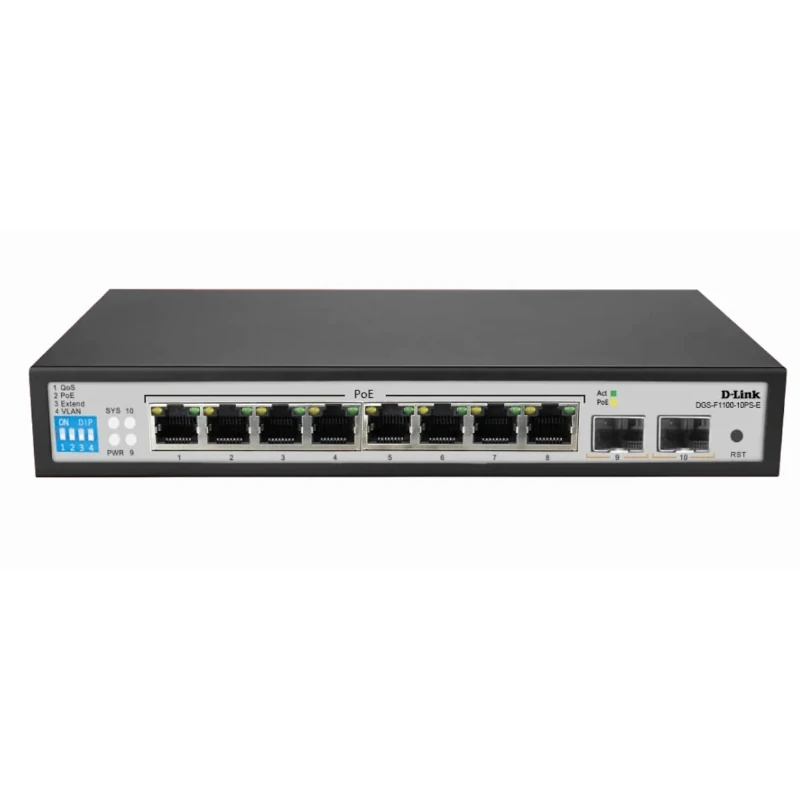

Switch D-Link 8 Ports DGS-F1100-10PS-E

Switch D-Link 8 Ports DGS-F1100-10PS-E

Switch D-Link 8 Ports DGS-F1100-10PS-E

18,500DA

Switch D-Link 8 Ports DGS-F1100-10PS-E

DGS-F1100-10PS-E is a managed switch designed to meet the requirements of small, medium, and enterprise businesses. DGS-F1100-10PS-E supports multiple PoE standards make it ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.

Switch D-Link 8 Ports DGS-F1100-10PS-E fiche technique:

General
Model DGS-F1100-10PS-E
Interfaces
  • 8 x 10/100/1000BASE-T
  • 2 x 100/1000 Mbps SFP ports
Port Standards
  • IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet
  • IEEE 802.3u:100BASE-TX fast Ethernet IEEE 802.3ab:1000BASE-T gigabit Ethernet
  • IEEE 802.3z:1000BASE-X gigabit Ethernet fiber） IEEE 802.3ad: comply link aggregation standard IEEE 802.3x: flow control
  • IEEE 802.1p: About the traffic priority of the second layer of QoS / Cos protocol (multicast filtering)
  • IEEE 802.1q: VLAN Bridge operation IEEE 802.1d:STP spanning tree IEEE 802.1s: MSTP spanning tree
  • IEEE 802.1w: RSTP spanning tree

PoE
PoE Standards IEEE 802.3af/at
PoE Capable Ports Port 1-8 can support up to 250m @10Mbps with Extend Enable
Power Budget 96W (30W max. per port)

Uplink Port Settings
From Port Specifies the start port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches.
To Port Specifies the end port in the range for Uplink Ports. These are used for connecting the surveillance VLAN with other switches
Network Cables UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
  • Full/Half-duplex for 10/100 Mbps
  • Full duplex for 1000 Mbps

Performance
Switching Capacity 20 Gbps
Transmission Method Store-and-forward
MAC Address Table 8K entries
Maximum 64 Byte Packet Forwarding Rate 14.88 Mpps

LED’s
Power ✓
System ✓

Physical/Environmental
Power Input DC:12V 1A
Operating Temperature 0°C ~ 50°C
Storage Temperature -40°C to 70°C
Operating Humidity 10% to 95% relative humidity no condensation
Storage Humidity 5% to 90% relative humidity no condensation
Dimensions (L x W x H) 225 x 120 x 35 mm
