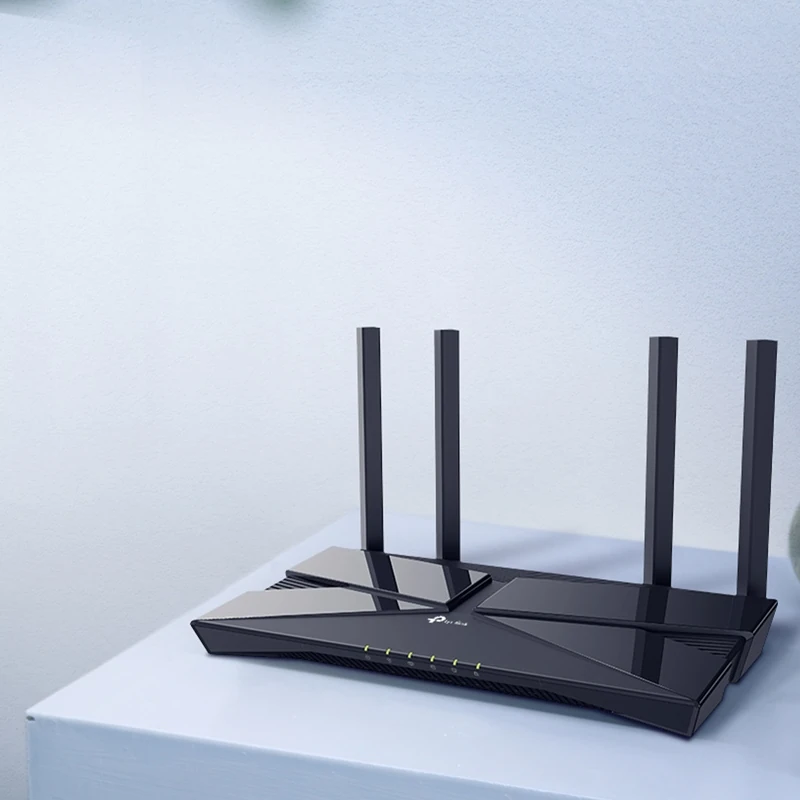

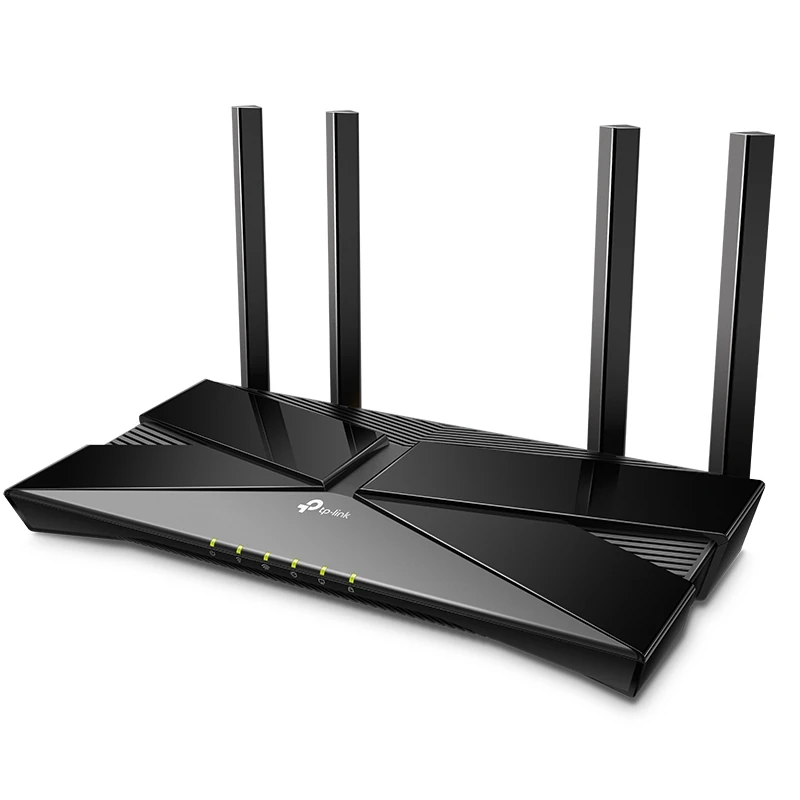

Routeur Gigabit WiFi-6 AX1500 Archer AX10 Bi-bande
- A relier à votre box, pour booster la couverture et le débit WiFi sur de petites surfaces
- WiFi 6 ultra rapide : bénéficiez d’une vitesse WiFi nouvelle génération allant jusqu’à 1,5 Gbps †
- Processeur triple cœur: réponse instantanée à toutes vos activités réseau avec un processeur triple cœur 1,5 GHz.
- Couverture plus large – 4 antennes et la technologie de formation de faisceaux focalisent le signal vers des clients individuels pour une couverture plus étendue †.
- Connectez des dizaines de périphériques — Plus de connexions simultanées et un débit moyen plus élevé avec OFDMA
- Ports Gigabit complets – Tirez pleinement parti des débits haut débit allant jusqu’à 1 Gbps.
- Configuration facile – Terminez la mise à niveau de votre réseau en quelques minutes avec l’application Tether
- Compatible avec Alexa – Contrôlez votre routeur via des commandes vocales et rendez votre vie plus intelligente et plus facile avec Amazon Alexa.
Routeur Gigabit WiFi-6 AX1500 Archer AX10 Bi-bande fiche technique:
WIFI | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |

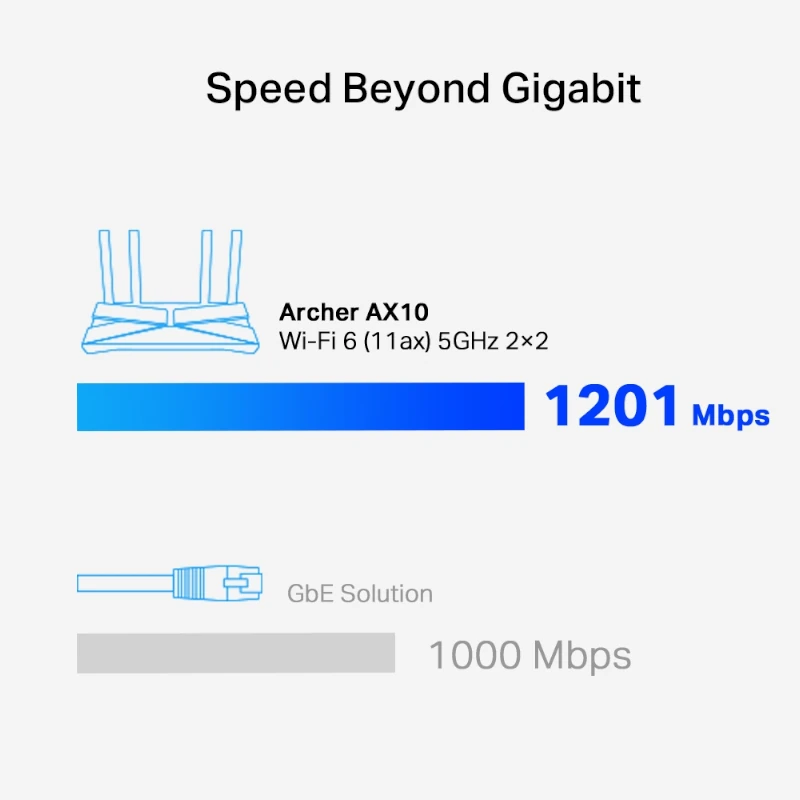

Débits WiFi | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
Couverture WiFi | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
Capacité WiFi | High
Dual-Band OFDMA Airtime Fairness 4 Streams |
Modes de Fonctionnement | Router Mode Access Point Mode |
SÉCURITÉ | |
---|---|
Sécurité Réseau | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Réseau Invité | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
Serveur VPN | OpenVPN PPTP |
Chiffrement WiFi | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
MATERIEL | |
---|---|
Processeur | 1.5 GHz Triple-Core CPU |

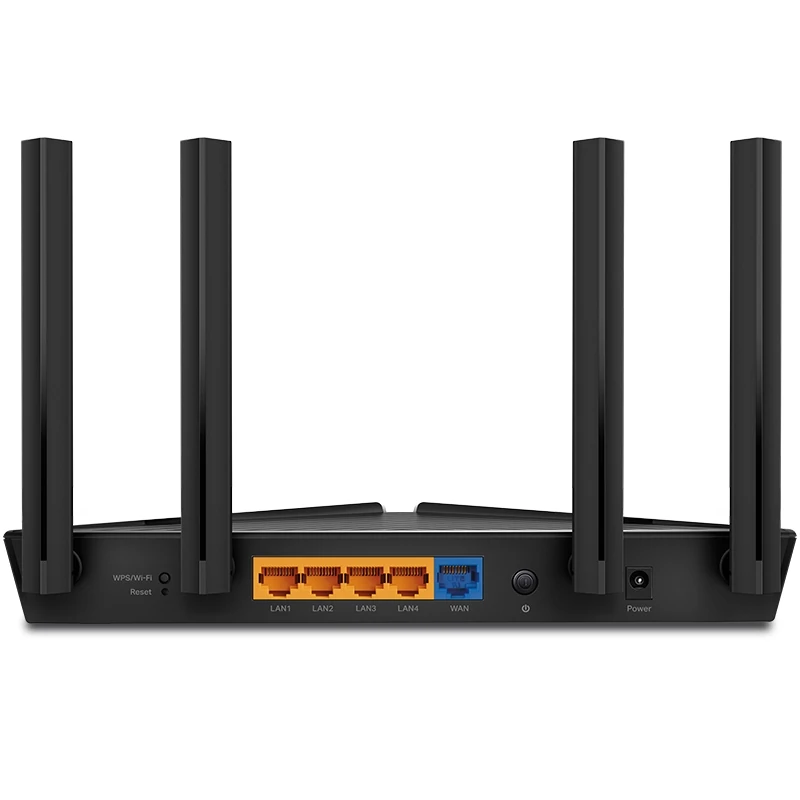

Ports Ethernet | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
Boutons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
Puissance | 12 V ⎓ 1 A |
LOGICIEL | |
---|---|
Protocoles | IPv4 IPv6 |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX10 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
Contrôle Parental | URL Filtering Time Controls |
Types WAN | Dynamic IP Static IP PPPoE PPTP L2TP |
Gestion des Priorités | QoS by Device |
Service Cloud | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
Transfert NAT | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Administration | Tether App Webpage Check Web Emulator> |
AUTRES | |
---|---|
Systèmes Requis | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environnement | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
DONNEES DE TEST | |
---|---|
Puissance Transmission WiFi | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
Sensibilité Réception WiFi | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm |
PHYSIQUE | |
---|---|
Dimensions (L×P×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
Contenu de la boite | Wi-Fi Router Archer AX10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
