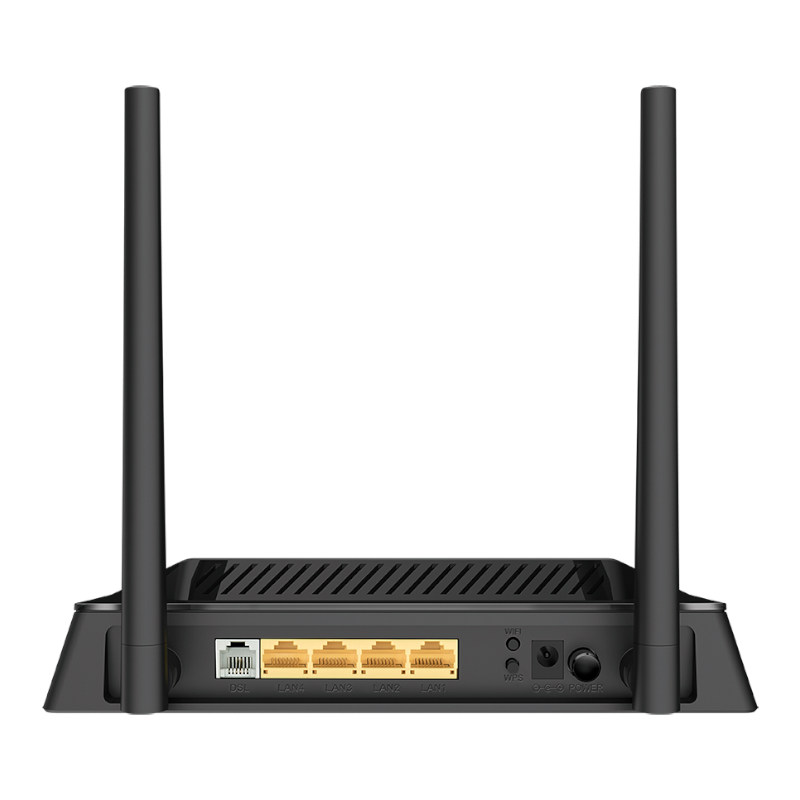

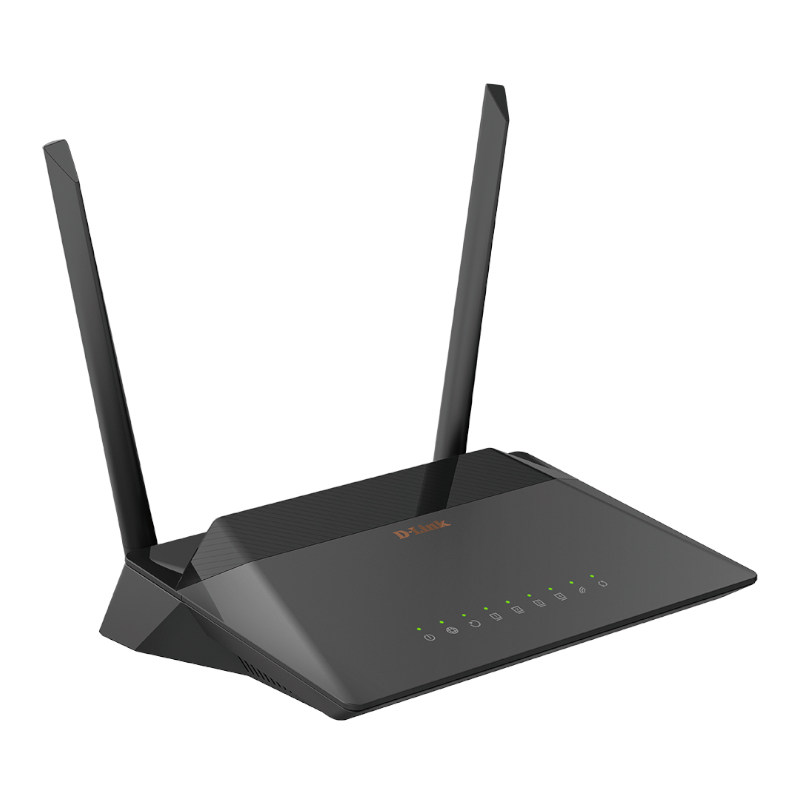

Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #01
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #02
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #03
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #04
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #01
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #02
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #03
Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ image #04

Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+

Disponibilité :

Rupture de stock

Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+

5 700DA

Rupture de stock

Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+

  • Modem VDSL2 intégré
  • Compatible sans fil 802.11n/g avec des vitesses allant jusqu’à 300 Mbps
  • Quatre ports Fast Ethernet 10/100
  • Wi-Fi protégé (WPS)
  • Cryptage sans fil WPA2
  • Prise en charge de la norme de cryptage avancée (AES)
  • Traduction d’adresses réseau (NAT)
  • Surveillance IGMP
  • Priorisation du trafic de qualité de service (QoS)
  • Mappage des ports PVC/VLAN
  • Annexe A/L/M

Modem Router D-Link sans-fil dsl-224 N300 VDSL2/ADSL2+ fiche technique:

Brand D-Link
Model DSL-224
Category Modems & Routeurs
Standards IEEE 802.11b/g/n
Frequency range 2400 ~ 2483.5MHz
Wireless connection security
  • WEP
  • WPA/WPA2 (Personal/Enterprise)
  • МАС filter
  • WPS (PBC/PIN)
Advanced functions
  • WMM (Wi-Fi QoS)
  • Information on connected Wi-Fi clients
  • Advanced settings
  • Guest Wi-Fi / support of MBSSID
  • Limitation of wireless network rate
  • Periodic scan of channels, automatic switch to least loaded channel
  • Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
Wireless connection rate
  • IEEE 802.11b: 1, 2, 5.5, and 11Mbps
  • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
  • And IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power
  • 802.11b 15dBm (+/-1dB)
  • 802.11g 14dBm (+/-1dB)
  • 802.11n 14dBm (+/-1dB)
Receiver sensitivity
  • 802.11b – 86dBm
  • 802.11g – 72dBm
  • 802.11n
  • HT20 – 67dBm
  • HT40 – 65dBm
Modulation schemes
  • 802.11b: CCK (11, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS
  • 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM
  • 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM, etc.
Physical Parameters
Dimensions (L x W x H) 205 x 139 x 32 mm (8 x 5.5 x 1.3 in)
Weight 260 g (0.6 lb)
Operating Environment
Power Output: 12V DC, 1A
Temperature
  • Operating: from 0 to 40 °C
  • Storage: from -20 to 70 °C
Humidity From 5% to 95% (non-condensing)
Delivery Package
  • Router  DSL-224
  • Power adapter DC 12V/1A
  • RJ-11 telephone cable
  • Ethernet cable
  • Splitter
  • “Quick Installation Guide” (brochure)
Hardware
Processor RTL8685S (500MHz)
RAM 32MB, DDR2 SDRAM
Flash 8MB, SPI
Interfaces
  • RJ-11 DSL port
  • 4 10/100BASE-TX LAN ports
LEDs
  • POWER
  • INTERNET
  • DSL
  • 4 LAN LEDs
  • WLAN
  • WPS
Buttons
  • POWER button to power on/power off
  • RESET button to restore factory default settings
  • WPS button to set up wireless connection
  • WIFI button to enable/disable wireless network
Antenna Two external non-detachable omnidirectional antennas (5dBi gain)
MIMO 2 x 2
Power connector Power input connector (DC)
DSL Parameters
VDSL/ADSL Standards
  • VDSL2: ITU G.993.2, support of 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a profiles
  • ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs)
  • ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
  • ADSL2+: ITU-T G.992.5 Annex A/L/M
ATM/PPP Protocols
  • Bridged and routed Ethernet encapsulation
  • VC-based or LLC-based multiplexing
  • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
  • ATM Adaptation Layer Type 5 (AAL5)
  • ITU-T I.610 OAM F4/F5 loopback
  • ATM QoS
  • PPP over ATM (RFC 2364)
  • PPP over Ethernet (PPPoE)
  • Keep-alive for PPP connections
Software
WAN connection types
  • PPPoA
  • PPPoE
  • IPv6 PPPoE
  • PPPoE Dual Stack
  • IPoA
  • Static IPv4 / Dynamic IPv4
  • Static IPv6 / Dynamic IPv6
  • Bridge
Network functions
  • DHCP server/relay
  • Advanced configuration of built-in DHCP server
  • Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
  • DNS relay
  • Dynamic DNS
  • Static IP routing
  • Static IPv6 routing
  • IGMP Proxy
  • IGMP snooping
  • RIP
  • Support of UPnP IGD
  • Support of VLAN
  • WAN ping respond
  • Support of SIP ALG
  • Support of RTSP
  • LAN/WAN conversion
Firewall functions
  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
  • IPv4/IPv6 filter
  • MAC filter
  • URL filter
  • DMZ
  • Prevention of ARP and DDoS attacks
  • Virtual servers
  • Built-in Yandex.DNS web content filtering service
VPN IPsec/PPTP/L2TP/PPPoE pass-through
QoS
  • Interface grouping
  • VLAN priority (802.1p)
Management and monitoring
  • Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
  • Multilingual web-based interface for configuration and management
  • Support of D-Link Assistant application for Android and iPhone smartphones
  • Firmware update via web-based interface
  • Automatic notification on new firmware version
  • Saving/restoring configuration to/from file
  • Support of logging to remote host
  • Automatic synchronization of system time with NTP server and manual time/date setup
  • Ping utility
  • Traceroute utility
  • TR-069 client
