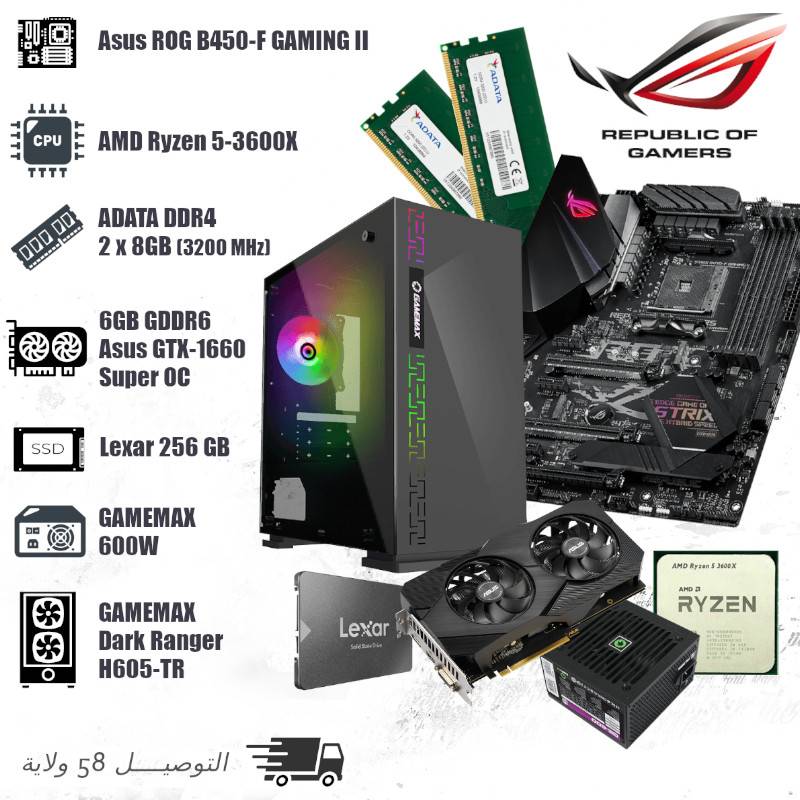

CONFIG Ryzen 5-3600X GTX-1660 Super (6GB OC GDDR6)


CONFIG Ryzen 5-3600X GTX-1660 Super (6GB OC GDDR6)

  • Carte Mère: Asus ROG B450-F GAMING II
  • CPU: AMD Ryzen 5-3600X
  • GPU: GTX-1660 Super 6GB ASUS GeForce OC GDDR6
  • RAM: ADATA DDR4 16GB (2* 8GB 3200 MHz)
  • SSD: Lexar 256 GB
  • Alimentation: GAMEMAX 600W 80+
  • Boitier: GAMEMAX Dark Ranger H605-TR

233 400DA

CONFIG Ryzen 5-3600X GTX-1660 Super (6GB OC GDDR6)

  • Carte Mère: Asus ROG B450-F GAMING II
  • CPU: AMD Ryzen 5-3600X
  • GPU: GTX-1660 Super 6GB ASUS GeForce OC GDDR6
  • RAM: ADATA DDR4 16GB (2* 8GB 3200 MHz)
  • SSD: Lexar 256 GB
  • Alimentation: GAMEMAX 600W 80+
  • Boitier: GAMEMAX Dark Ranger H605-TR

CONFIG Ryzen 5-3600X GTX-1660 Super (6GB OC GDDR6)

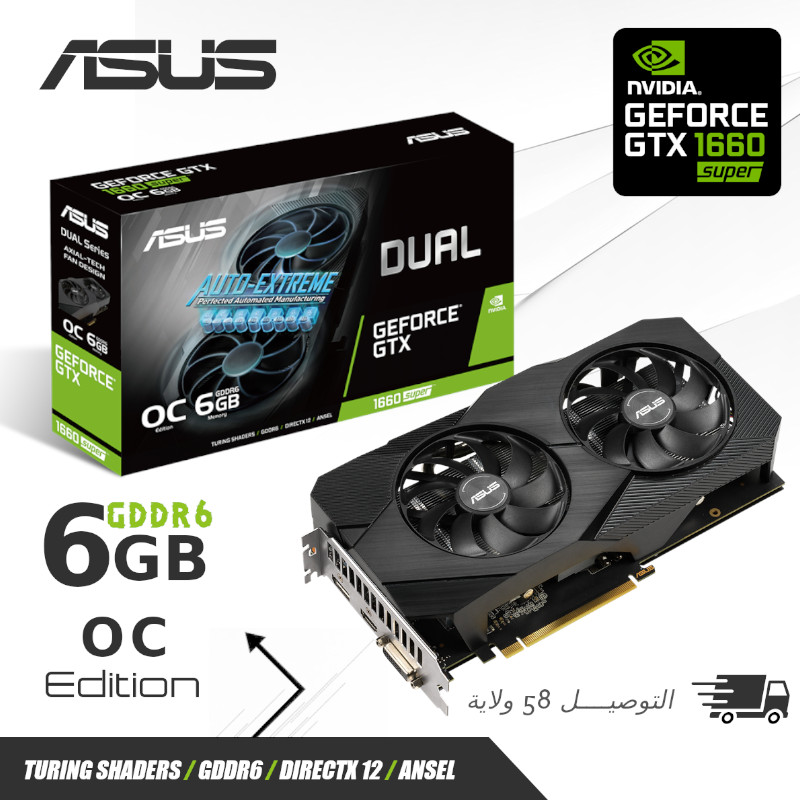

Carte Graphique GTX-1660 Super 6GB ASUS GeForce OC GDDR6 Fiche technique:

Marque Asus
Moteur graphique NVIDIA GeForce GTX 1660 SUPER
Catégorie Cartes Graphique
Référence DUAL-GTX1660S-O6G-EVO
Bus standard PCI Express 3.0
OpenGL OpenGL 4.6
Mémoire vidéo GDDR6 de 6 Go
Horloge moteur
  • OC Mode – 1860 MHz (Boost Clock)
  • Gaming Mode (Default) – GPU Boost Clock : 1830 MHz , GPU Base Clock : 1530 MHz
Cœurs CUDA 1408
Vitesse mémoire 14002 MHz
Interface mémoire 192-bit
Résolution Digital Max Resolution 7680 x 4320
Interface
  • Oui x 1 (DVI-D natif)
  • Yes x 1 (Native HDMI 2.0b)
  • Oui X 1 (native DisplayPort 1.4)
  • Oui (HDCP 2,2)
Nombre d’écrans maximum supportés 3
Support NVlink / Crossfire Non
Accessoires Oui x 1
Logiciel ASUS GPU Tweak II et pilotes : merci de télécharger tous les logiciels à partir du site d’assistance.
Dimensions
  • 9.5  » x 5.1  » x 2.1  » Inch
  • 24.2 x 13 x5.3 Centimeter
Alimentation recommandée 450 W
Connecteurs d’alimentation 1 x 8 broches
Slot 2,3 Slot

Carte-mère ROG STRIX B450-F Gaming II Asus AM4 Socket fiche technique:

Marque
ASUS
Modèle
B450-F
Catégorie
Carte Mère
Référence
90MB15V0-M0EAY0
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD B450
Mémoire
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Carte graphique
  • 1 x HDMI 2.0b
  • 1x DisplayPort 1.2
  • *Graphics specifications may vary between CPU types.
  • Integrated Graphics Processor
Support multi-GPU
Supports AMD 3-Way CrossFireX™ Technology
Slots d’extension
  • 2 x PCIe 3.0 x16 (x16 or x8/x4)
  • 1 x PCIe 2.0 x16 (x4 mode) *
  • 3rd/2nd/1st Gen AMD Ryzen™ Processors
    • 1 x PCIe 3.0 x16 (x4 mode)
  • AMD B450 chipset
    • 3 x PCIe 2.0 x1
    • 1 x PCIe 3.0 x16 (x8 mode)
  • AMD Athlon™ with Radeon™ Vega Graphics Processors
Stockage
  • 3rd/2nd/1st Gen AMD Ryzen™ Processors :
    • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
    • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*
  • 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    • 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  • Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
    • 2 x SATA 3Gb/s port(s),
    • 2 x SATA 6Gb/s port(s)
    • 2x SATA 6Gb/s port(s),
  • AMD B450 chipset :
    • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • AMD Athlon™ with Radeon™ Vega Graphics Processors :
    • 4 x SATA 6Gb/s port(s),
    • Support Raid 0, 1, 10
LAN
  • Intel® I211-AT 1Gb Ethernet
  • ASUS LANGuard
Audio
  • – Audio Shielding
  • ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
  • – Premium Japanese audio capacitors
  • – Audio Cover
  • – Optical S/PDIF out header(s) at mid-board
  • – Dual OP Amplifiers
  • – Impedance sense for front and rear headphone outputs
  • – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality120dBSNR stereo playback outputand113dBSNR recording input
  • – Supports up to 32-Bit/192kHz playback *
  • Audio Feature :
  • – SupremeFX Shielding™ Technology
  • * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Ports USB
  • 4 x USB 3.2 Gen 1 port(s)(3 x Type-A +1 x USB Type-C®)
  • Front USB Port ( Total 4 )
  • 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
  • Rear USB Port ( Total 8 )
  • 2 x USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 port(s)
Software Features
  • ROG Exclusive Software
  • – RAMCache III
  • – ROG CPU-Z
  • – GameFirst VI
  • – Sonic Studio III + Sonic Studio Virtual Mixer
  • – Sonic Radar III
  • – Overwolf
  • – Anti-virus software
  • ASUS Exclusive Software Features
  • Armoury Crate
  • – Aura Creator
  • – Aura Sync
  • Ai noise cancelling microphone
  • AI Suite 3:
  • – 5-Way Optimization by Dual Intelligent Processors 5
  • TPU
  • EPU
  • DIGI+ VRM
  • Fan Xpert 4
  • Turbo app
  • – EZ update
  • AI Charger
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – // EZ Flash 3
  • – // UEFI BIOS EZ Mode
ASUS Special Features
  • Aura Sync
    • Standard RGB header(s)
    • Addressable Gen 2 RGB header(s)
  • ASUS Q-Design
    • ASUS Q-DIMM
    • // Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    • // Q-Slot
  • ASUS Thermal Solution
    • Aluminum M.2 heatsink
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • Clear CMOS header
    • Pre-mounted I/O shield
    • SafeSlot
Interface E/S arrière
  • 1 x Intel I211-AT 1Gb Ethernet
  • 2 x USB 3.2 Gen 2
  • 3 x USB 3.2 Gen 1 Type-A
  • 1 x USB 3.2 Gen 1 USB Type-C
  • 1 x BIOS FlashBack Button(s)
  • 1x PS/2 keyboard/mouse combo port(s)
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 5 x Audio jack(s)
Interface E/S interne
  • 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 1x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s)
  • 3 x Chassis Fan connector(s)
  • 1 x AIO_PUMP connector
  • 1 x Addressable RGB header
  • 1x AAFP connector
  • 2 x Aura RGB Strip Header(s)
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 1 x TPM header
  • 1x COM port(s) connector(s)
  • 6 x SATA 6Gb/s connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1x System panel(s)
  • 1 x Thermal sensor connector(s)
  • 1 x Clear CMOS jumper(s)
Accessoires
  • 1 x M.2 SSD screw package(s)
  • 1 x M.2 Rubber Package(s)
  • User´s manual
  • 4 x SATA 6Gb/s cable(s)
  • 1 x Supporting DVD
  • 1 x ROG Strix stickers
  • 1x Cable ties pack(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Gestion

du réseau
WOL by PME, PXE
Système d’exploitation
Windows 10 64-bit
Facteur d’encombrement
  • ATX Form Factor
  • 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Remarques
  • * PCIe x16_3 slot share bandwidth with PCIe x1_1, PCIe x1_2 and PCIe x1_3
  • * When the M.2_1 Socket 3 is operating in SATA or PCIE mode, SATA6G_5/6 ports will be disabled.
  • *When the M.2_2 is occupied by M.2 device, PCIe x16_1 will run at x8 mode.



CPU Gaming AMD-RYZEN 5-3600X 4.4GHz 32Mo L3 cache fiche technique:

Infos essentielles

Fabricant AMD
Plateforme Boxed Processor
Catégorie Processeurs
Famille produit AMD Ryzen Processors
Gamme de produits AMD Ryzen™ 5 Desktop Processors
Socket AM4

Spécifications du processeur

Nb. de cœurs 6
Nb. de threads 12
Fréquence de base 3.8 GHz
Fréquence Boost maximale Jusqu`à 4.4GHz
Cache
  • L1: 384Ko
  • L2: 3MB
  • L3: 32MB
Enveloppe thermique (TDP) nominale/TDP 95W
Processor Technology for CPU Cores TSMC 7nm FinFET
Débridé Oui
Système de refroidissement (PIB) Wraith Stealth
Solution de refroidissement (MPK) Wraith Spire
Températures maximales 95°C
Date de lancement 7/7/2019
Systèmes d’exploitation compatibles
  • Windows 11 – Édition 64 bits
  • Windows 10 – Édition 64 bits
  • RHEL x86 64-Bit
  • Ubuntu x86 64-Bit
  • * La prise en charge du système d’exploitation (SE) varie selon les fabricants.

Connectivité

Version PCI Express PCIe 4.0 x16
Mémoire DDR4
Canaux mémoire 2
Vitesse de mémoire maximale Jusqu’à 3200MHz
