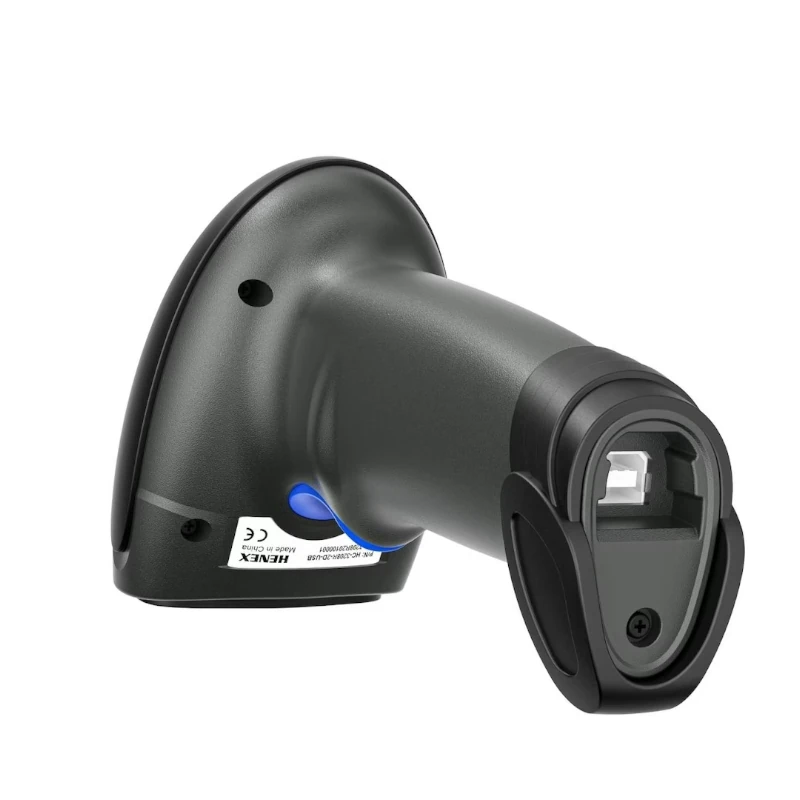

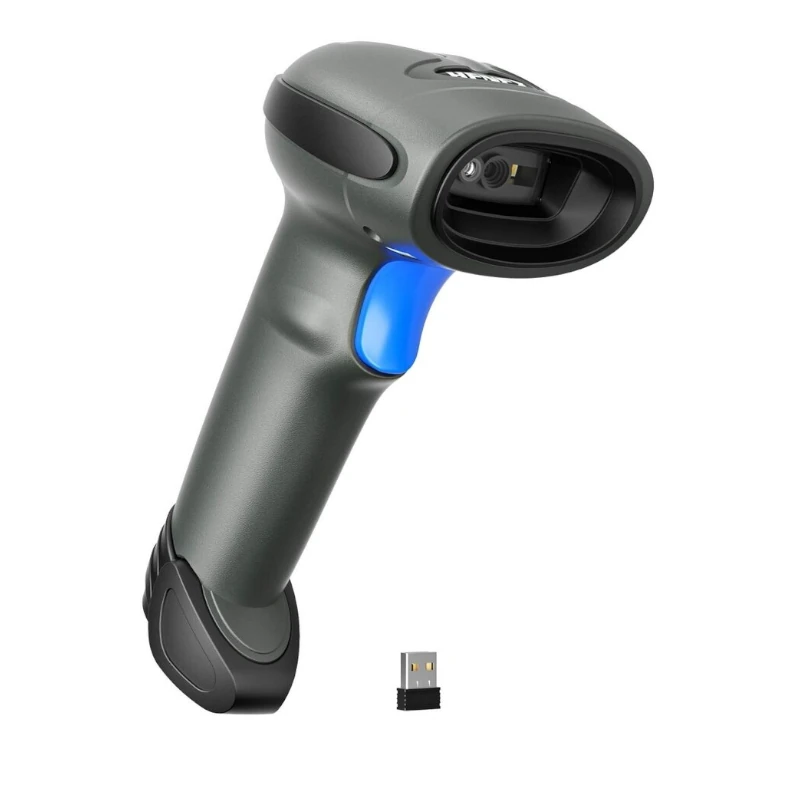

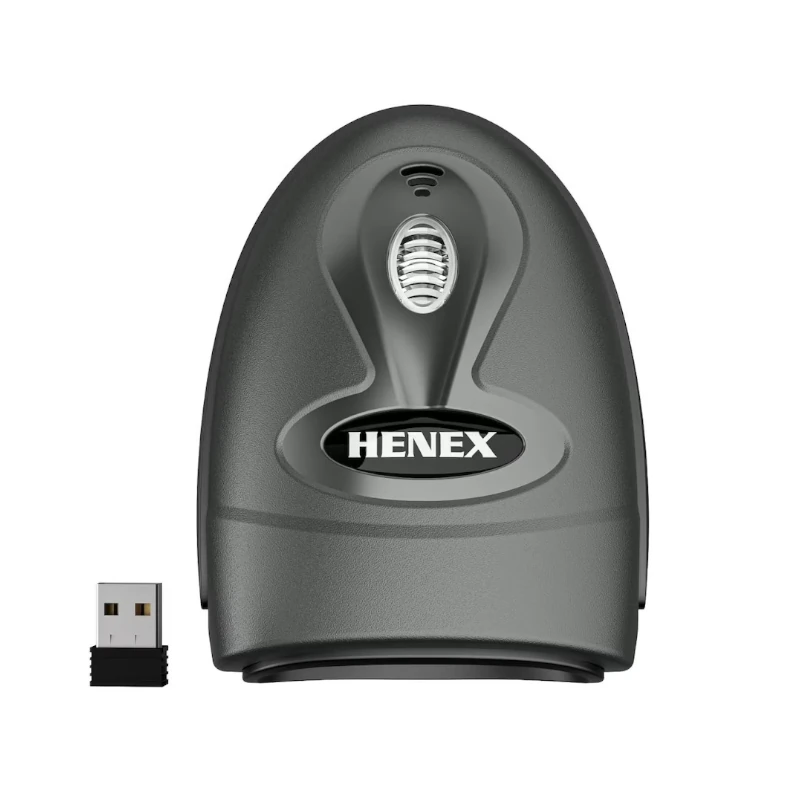

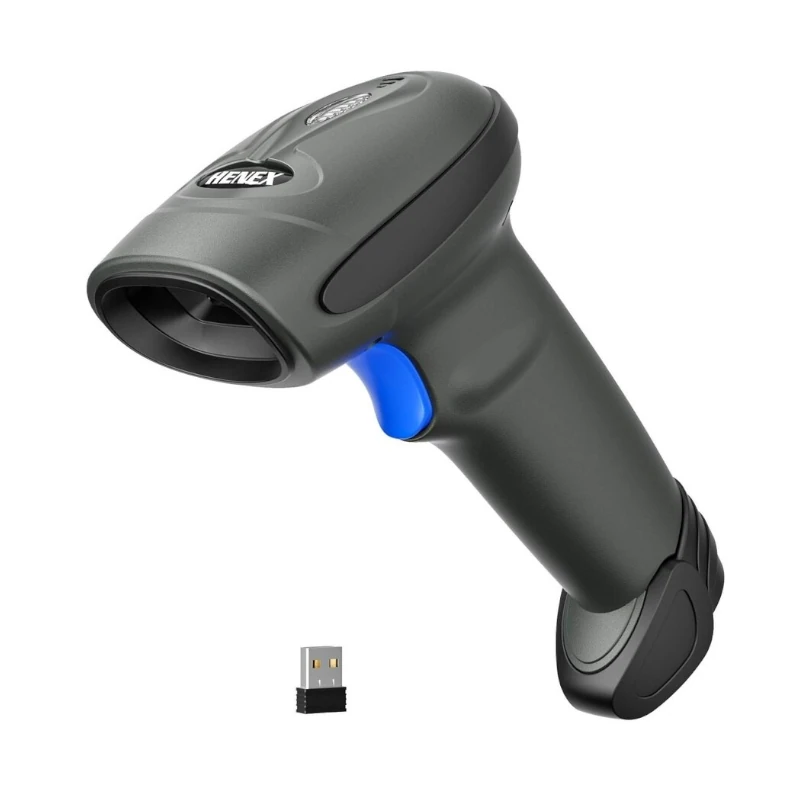

Lecteur Code Barre Henex HC-3208R 2D QR USB + Bluetooth
Lecteur Code Barre Henex HC-3208R 2D QR USB + Bluetooth
Laser Class CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
| OPERATIONAL PARAMETER | |
| Model No. | HC-3208R |
| Image(Pixels) | 640 pixels(H)*480 pixels(v) |
| Light Source Aiming: | 617 nm LED ;illumination:6500K LED |
| Depth of Field | 40-200mm@UPC/EAN13mil PCS=90%; 20-250mm@QR 20mil PCS=100% |
| Scan Angle | Elevation angle 65°/Tilt angle 30°/Declination 55° |
| Field of view | 34° horizontal, 28° vertical |
| Read Resolution | More than 4 mil |
| Print Contrast | More than 25% |
| Visual Indicator | Blue LED Lights , Buzzer |
| Communication Interfaces | 2.4G, blue BLE4.0(Optional) |
| Beeper Operation | Programmable tone & Volume |
| PHYSICAL CHARACTERISTICS | |
| Dimension | 173mm*67mm*94mm(L*W*H) |
| Package box size | 220mm*70mm*95mm(L*W*H) |
| Weight | 190g |
| Material | ABS + PC |
| POWER PARAMETER | |
| Input Voltage | 5VDC±10% |
| Working corrent | 400mA |
| SAFETY REGULATORY | |
| EMC CDRH Class IIa, IEC 60825-1 Class 1 | |
| ENVIRONMENTAL PARAMETER | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Working Humidity | 5% to 95% relative humidity, non-condensing |
| Light Levels | 0 to 100,000 Lux (Daylight) |
| Drop Durability | Designed to withstand 5Meters drop |
| IP Level | IP54 |
| DECODE CAPABILITY | |
| 2D codes | QR Code, Data Matrix, PDF417,Aztec, Hanxin code, OCR code, Maxicode,etc. |
| 1D codes | PC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5 IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded. |
