Imprimantes Ticket

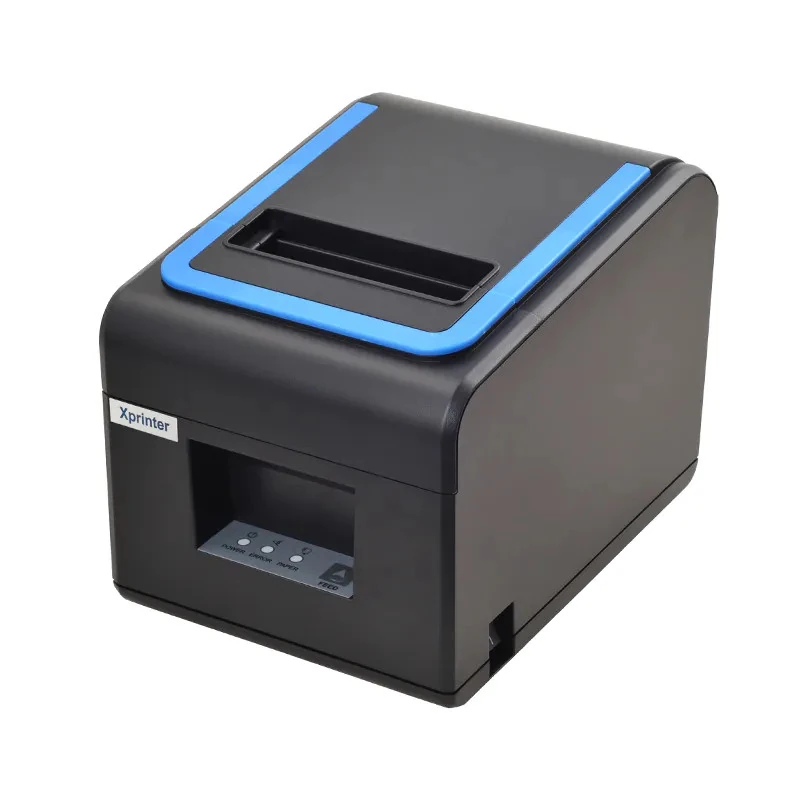

Imprimante Ticket XPRINTER V320M USB + LAN
Imprimante Ticket XPRINTER V320M + LAN
17 900DA
Imprimante Ticket XPRINTER V320M + LAN
Imprimante Ticket XPRINTER V320M + LAN
| Printing | XP-V320M | |
| Printing method | Direct thermal | |
| Print width | V320M: 72mm; | |
| Column capacity | 576 dots/line (adjustable by command) | |
| Printing speed | V320M: 200mm/s | |
| Interface | USB+Serial / Lan | |
| Printing paper | 79.5±0.5mm | |
| Line spacing | 3.75mm (Adjustable by commands) | |
| Column number | 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/ Chinese,traditional Chinese – 21 columns or 24 columns |
|
| Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | |
| Cutter | ||
| Auto cutter | Partial | |
| Barcode Character | ||
| Extension character sheet |
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D barcode | V320M: void; | |
| Buffer | ||
| Input buffer | 64k bytes | |
| NV Flash | 256k bytes | |
| Power | ||
| Power adaptor | Input：AC 110V/220V, 50～60Hz | |
| Power source | Output：DC 24V/2.5A | |
| Cash drawer output | DC 24V/1A | |
| Physical characteristics | ||
| Weight | 1.05 KG | |
| Dimensions | 190×140×136mm ( D×W×H) | |
| Environmental Requirements | ||
| Work environment | Temperature (0～45) humidity(10～80%) | |
| Storage environment | Temperature(-10～60℃) humidity(10～80%) | |
| Reliability | ||
| Cutter life | 1.5 million cuts | |
| Printer head life | 100KM | |
