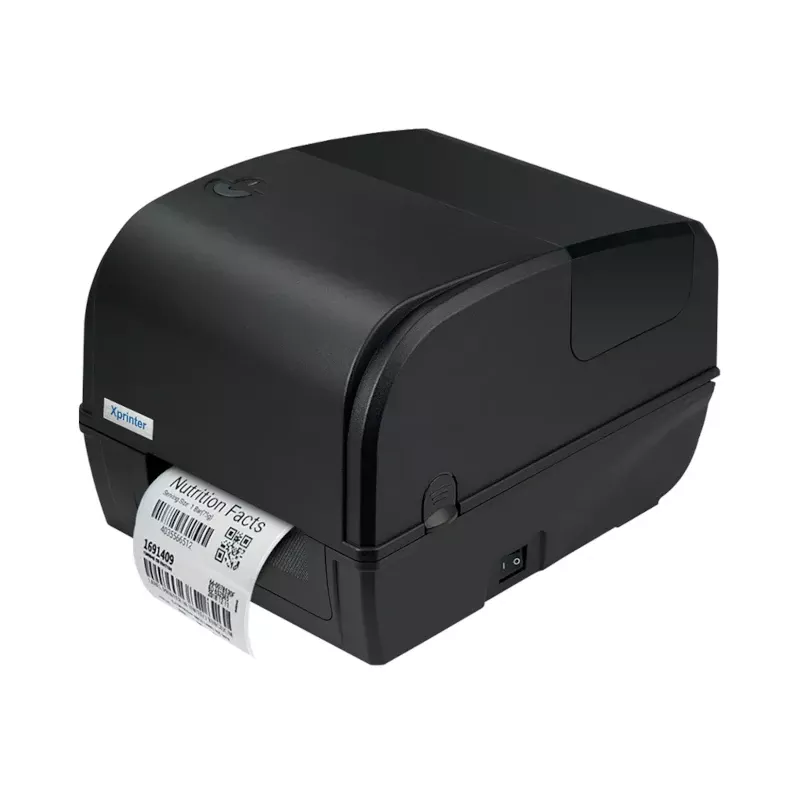

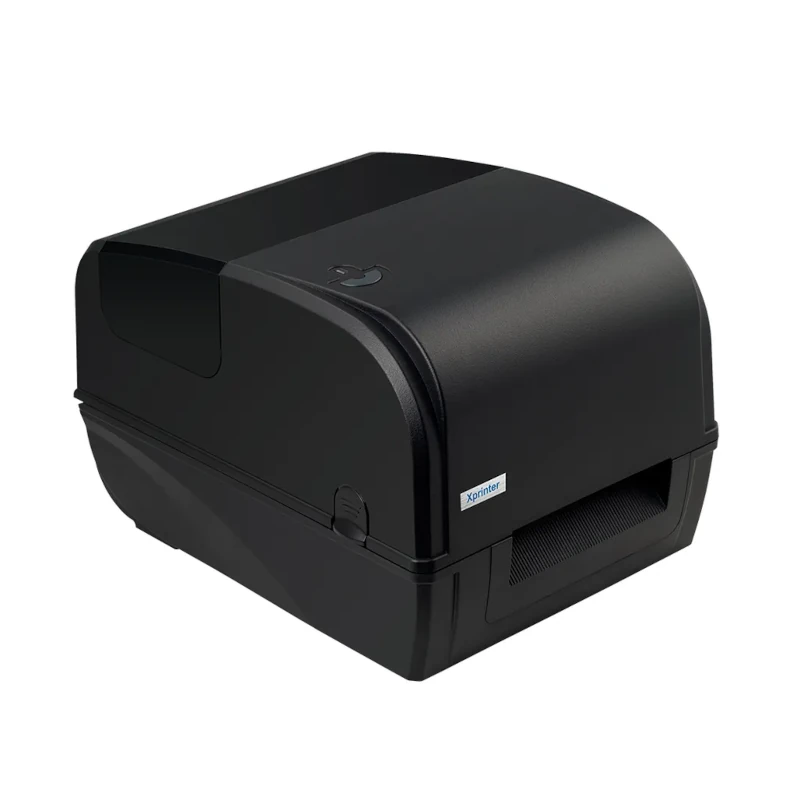

Imprimante Code-Barre Xprinter XP-TT426B USB/ LAN/ Serie

Imprimante Code-Barre Xprinter XP-TT426B USB/ LAN/ Serie

Imprimante Code-Barre Xprinter XP-TT426B USB/ LAN/ Serie

Specifications
Printer Model XP-TT426B
Printing Features
Resolution 203 DPI
Printing method Thermal Transfer / Direct Thermal
Max.print speed 127 mm/s Max.
Max.print width 108 mm (4.25″)
Max.print length 1778 mm (70″)
Media
Media type Continuous, gap, black mark, fan-fold and punched hole
Media width 25.4-118mm (1.0”-4.6”)
Media thickness 0.06~0.254 mm (2.36~10mil)
Media core diameter 25.4 ~ 76.2 mm (1 « ~ 3 « )
Label length 10 – 1778 mm(0.39″ ~ 70″ )
Label roll capacity 127 mm (5“) OD (External diameter)
Ribbon capacity Max.300m
Ribbon width 110 mm
Ribbon core
inner diameter

25.4 mm (1 »)
Performance Features
Processor 32-bit CPU
Memory 8MB Flash Memory/ 8MB SDRAM/ Flash memory can be expanded Max.4Gb
Interface:USB/ LAN/ SERIAL
Sensors ①Gap sensor
②Cover opening sensor
③Black mark sensor
④Ribbon sensor
Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D barcode
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5)

digits add-on, MSI, PLESSEY, POSTNET, China POST

2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation
0°、90°、180°、270°
Emulation TSPL、EPL、ZPL、DPL
Physical Features
Dimension 299 mm (D) x 235 mm (W) x 198.3 mm (H)
Weight 2.55kg
Reliability
Print head life 30 km
Software
Driver Windows/Linux/Mac
SDK Windows/Android/iOS
Power supply
Input：AC 110-240V,1.8A, 50-60Hz
Output：DC 24V, 2.5A, 60W
Options
Factory Options
① Built-in Ethernet server (10/100 Mbps); ② RS-232C (2400-115200 bps) communication interface;

③ Cutter ④ Peeling machine ⑤ Bluetooth module ⑥ WiFi module

Dealer Options ①External paper roll holder and 1 « paper roll;
②Extension board for external paper roll holder
Environmental Conditions
Operation

environment

5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing
Storage environment -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing
