Config i5-10400F B460+ GTX-1650-4GB/ 16GB/ 256SSD

Disponibilité :

Rupture de stock

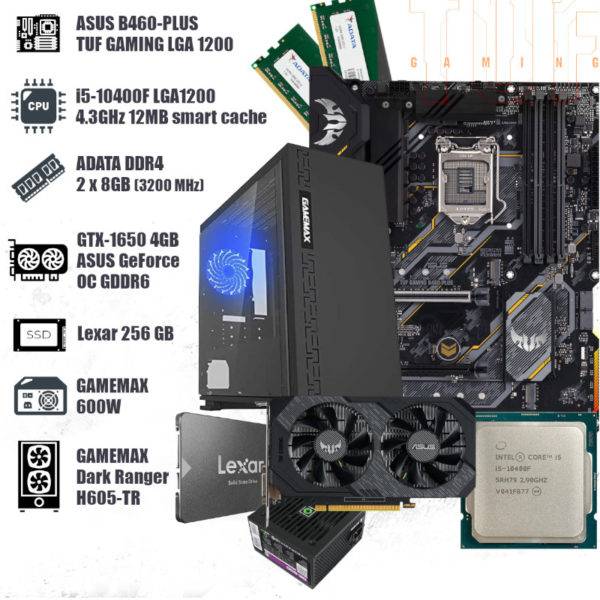

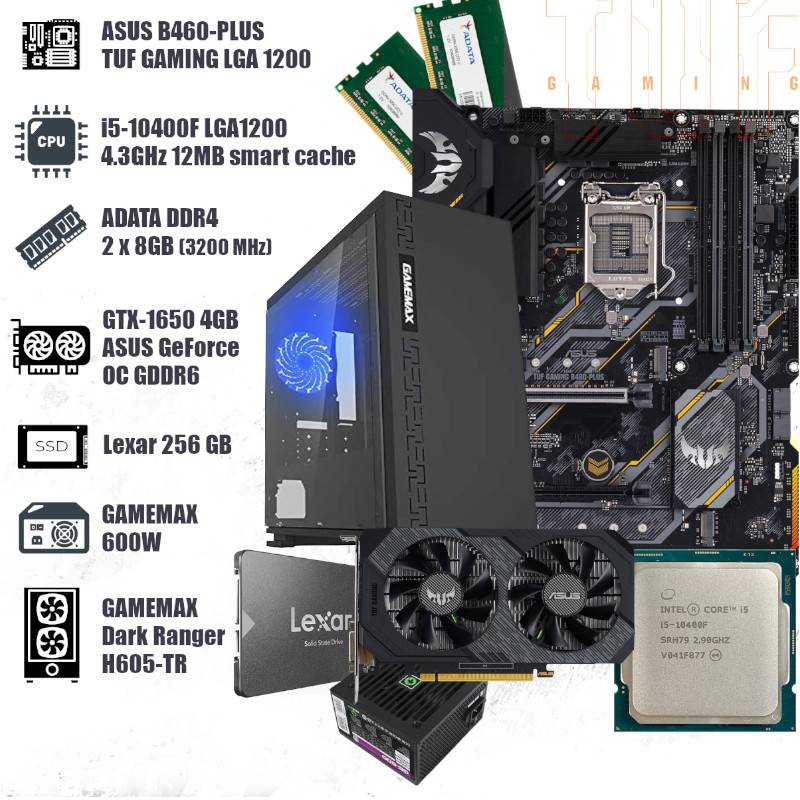

Config i5-10400F B460+ GTX-1650-4GB/ 16GB/256SSD

  • Carte Mère: ASUS B460-PLUS TUF GAMING LGA 1200
  • CPU: i5-10400F LGA1200 4.3GHz 12MB smart cache
  • GPU: GeForce GTX-1650 4GB TUF Gaming Asus OC GDDR6
  • RAM: ADATA DDR4 16GB (2 x 8 3200 MHz)
  • SSD: Lexar 256 GB
  • Alimentation: GAMEMAX 600W 80+
  • Boitier: GAMEMAX Dark Ranger H605-TR

178,000.00 DA

Rupture de stock

Config i5-10400F B460+ GTX-1650-4GB/ 16GB/256SSD

  • Carte Mère: ASUS B460-PLUS TUF GAMING LGA 1200
  • CPU: i5-10400F LGA1200 4.3GHz 12MB smart cache
  • GPU: GeForce GTX-1650 4GB TUF Gaming Asus OC GDDR6
  • RAM: ADATA DDR4 16GB (2 x 8 3200 MHz)
  • SSD: Lexar 256 GB
  • Alimentation: GAMEMAX 600W 80+
  • Boitier: GAMEMAX Dark Ranger H605-TR

Config i5-10400F B460+ GTX-1650-4GB/ 16GB/256SSD

Carte mère ASUS B460-PLUS TUF GAMING LGA 1200 fiche technique:

Marque ASUS
Modèle B460
Catégorie Carte Mère
Référence 90MB13N0-M0EAY0
CPU Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron *
Support des processeurs Intel gravés en 14  nm* Pour obtenir la liste des processeurs supportés, référez-vous à l´onglet “Liste des CPU supportés”.
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B460
Mémoire
  • 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered *
  • Architecture mémoire Dual Channel
  • Support de la technologie Intel Extreme Memory Profile (XMP)
  • OptiMem
  • * 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Carte graphique
  • Processeur graphique intégré
  • 1 x DisplayPort 1.4 **
  • 1x HDMI 1.4b
  • *Graphics specifications may vary between CPU types.
  • **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Slots d’extension
  • Intel 10th Gen Processors
    • 1 x PCIe 3.0 x16 (mode x16)
  • Intel B460 Chipset
    • 1 x PCIe 3.0 x16 (mode x4)
    • 3 x PCIe 3.0 x1
Stockage
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel B460 Chipset:
    • 1 x M.2 socket 3
    • 1 x M.2 socket 3
    • 6 x port(s) SATA 6 Gb/s
    • Support Raid 0, 1, 5, 10
    • Support de la technologie Intel Rapid Storage
    • Compatible avec la mémoire Intel Optane™ *2
LAN Intel I219-V 1Gb Ethernet
Audio
  • CODEC Realtek ALC S1200A 8 canaux audio haute définition
    • Support des fonctions: Jack-detection, Jack-detection, Enregistrement multiple, Front Panel Jack-retasking
  • Fonctionnalités audio:
    • Exclusive DTS Custom for GAMING Headsets.
    • Protection physique: séparation des signaux analogiques et numériques et réduction des interférences multilatérales.
    • Un design intelligent: séparation des canaux droits et gauches pour conserver la qualité des signaux audio.
    • Premium Japanese audio capacitors
Ports USB
  • Rear USB Port ( Total 6  )
    • 6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
  • Front USB Port ( Total 6  )
    • 2 x USB 3.2 Gen 1 port(s)
    • 4 x USB 2.0 port(s)
Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • – Aura Sync
  • AI Suite 3
  • – Performance And Power Saving Utility
  • Digi+ VRM
  • EPU
  • Fan Xpert 4
  • – EZ update
  • – PC Cleaner
  • – System Information
  • AI Charger
  • ASUS Turbo LAN
  • DTS Custom for GAMING Headsets
  • Norton Anti-virus software (Free Trial for 60 days)
  • DAEMON Tools
  • Google Chrome Browser & Google Toolbar
  • TUF GAMING CPU-Z
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • – ASUS CrashFree BIOS 3
  • – // EZ Flash 3
  • – // UEFI BIOS EZ Mode
ASUS Special Features
  • ASUS TUF PROTECTION
  • – // DIGI+ VRM
  • – // Enhanced DRAM Overcurrent Protection
  • – ASUS ESD Guards
  • – ASUS LANGuard
  • – // Overvoltage Protection
  • – ASUS SafeSlot Core+
  • – ASUS Stainless-Steel Back I/O
  • // Q-Design:
  • – ASUS Q-DIMM
  • – ASUS Q-Slot
  • – // Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS Thermal Solution:
  • – Aluminum heatsink design
  • ASUS EZ DIY
  • – Box Headers
  • AURA Sync
  • – Standard RGB headers
Interface E/S arrière
  • 1 x PS/2 combo clavier/souris
  • 1 x DisplayPort
  • 1x LAN (RJ45)
  • 1 x HDMI
  • 6 x USB 3.0
  • 6 x jack(s) audio
Interface E/S interne
  • 2 x port(s) USB 2.0 supportant 4 port(s) USB 2.0 supplémentaires
  • 1 x socket M.2 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 6 x connecteur(s) SATA 6Gb/s
  • 1 x connecteur(s) pour ventilateur du CPU
  • 2 x connecteur(s) pour ventilateur du châssis
  • 1 x connecteur(s) CPU OPT Fan
  • 1 x AIO_PUMP connector
  • 1x connecteur(s) d´alimentation EATX 24 broches
  • 1 x connecteur audio Front panel (AAFP)
  • 2 x Aura RGB Strip Headers
  • 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  • 1 x jumper(s) Clear CMOS
  • 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  • 1 x 8-pin EATX 12V Power connectors
  • 1 x connecteur System panel
  • 1x connecteur port COM
Accessoires
  • Manuel utilisateur
  • Cache E/S
  • 2 x câble(s) SATA 6.0 Gb/s
  • 1 x DVD de support
  • 1 x carte de certification TUF
  • 1x TUF Gaming Sticker
  • 1 x M.2 SSD screw package(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Gestion du réseau WOL by PME, PXE
Système d’exploitation Windows 10 64-bit
Facteur d’encombrement ATX
12  cm x 9.6  cm (30.5  pouces x 24.4  pouces)
Remarques
  • *1 M.2_1 shares bandwidth with SATA6G_1. When M.2_1 runs SATA mode, SATA6G_1 will be disabled.
  • *2 Only the M.2_2 socket can support Intel Optane Memory Ready.

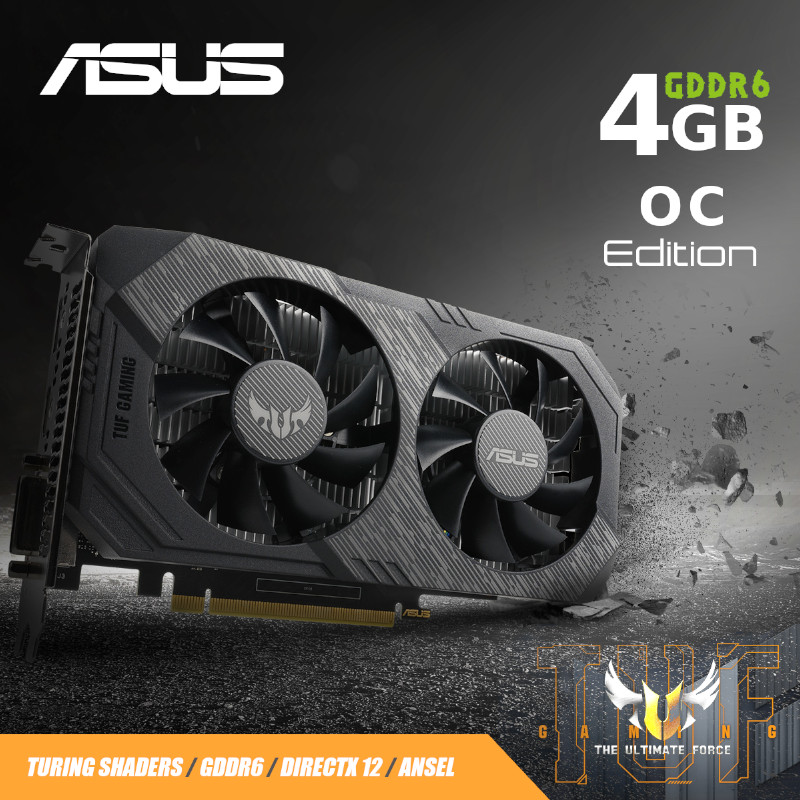

GeForce GTX-1650 4GB TUF Gaming Asus OC GDDR6 Fiche technique:

Marque Asus
Moteur graphique NVIDIA GeForce GTX 1650
Catégorie Cartes Graphique
Référence TUF-GTX1650-O4GD6-P-GAMING
Bus standard PCI Express 3.0
OpenGL OpenGL 4.6
Mémoire vidéo GDDR6 de 4 Go
Horloge moteur
  • OC Mode – 1785 MHz (Boost Clock)
  • Gaming Mode (Default) – GPU Boost Clock : 1755 MHz , GPU Base Clock : 1410 MHz
Cœurs CUDA 896
Vitesse mémoire 12 Gbps
Interface mémoire 128-bit
Résolution Digital Max Resolution 7680 x 4320
Interface
  • Oui x 1 (DVI-D natif)
  • Yes x 1 (Native HDMI 2.0b)
  • Oui X 1 (native DisplayPort 1.4)
  • Oui (HDCP 2,2)
Nombre d’écrans maximum supportés 3
Support NVlink / Crossfire Non
Accessoires 1 x Speedsetup manual
Logiciel ASUS GPU Tweak II et pilotes : merci de télécharger tous les logiciels à partir du site d’assistance.
Dimensions
  • 8.11 ” x 4.92 ” x 1.81 ” Inch
  • 20.6 x 12.5 x 4.6 Centimeter
Alimentation recommandée 300 W
Connecteurs d’alimentation S/O
Slot 2,3 Slot

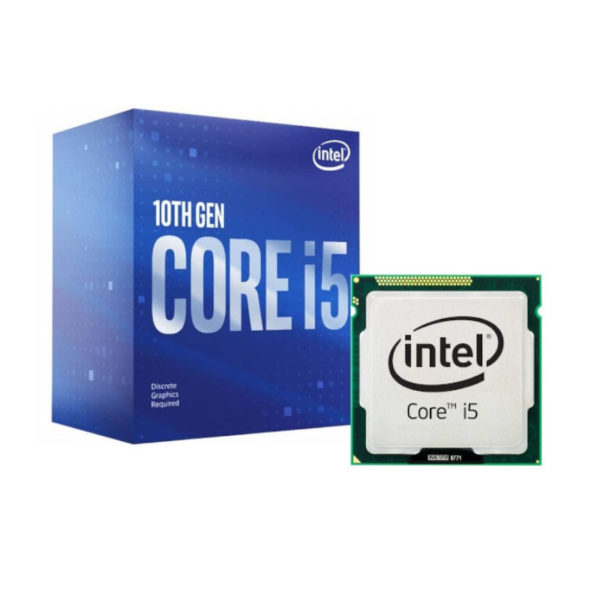

CPU Gaming i5-10400F LGA1200 4.3GHz 12MB smart cache fiche technique:

Infos essentielles

Fabricant Intel
Core I5
Catégorie Processeurs
Nom du code Produits anciennement Comet Lake
Segment vertical Desktop
N° du processeur i5-10400F
Socket LGA 1200
état Launched
Date de lancement Q2’20
Lithographie 14 nm

Spécifications du processeur

Nb. de cœurs 6
Nb. de threads 12
Fréquence de base 2.90 GHz
Fréquence Turbo maxi 4.30 GHz
Cache 12 MB Intel Smart Cache
Vitesse du bus 8 GT/s
Fréquence de la technologie Intel Turbo Boost 2.0 4.30 GHz
PDT 65 W

Infos supplémentaires

Options embarquées disponibles Non

Spécifications de la mémoire

Capacité mémoire maxi (dépend du type de mémoire) 128 GB
Types de mémoire DDR4-2666
Nb. max. de canaux mémoire 2
Bande passante mémoire maxi 41.6 GB/s
Mémoire ECC prise en charge Non

Options d’extension

évolutivité 1S Only
Révision PCI Express 3.0
Configurations PCI Express Up to 1×16, 2×8, 1×8+2×4
Nb. de voies PCI Express max. 16

Spécifications du package

Sockets gérés FCLGA1200
Configuration processeur(s) maxi 1
Spécifications de la solution thermique PCG 2015C
TJUNCTION 100°C
Taille du conditionnement 37.5mm x 37.5mm

Technologies avancées

Mémoire Intel Optane prise en charge Oui
Intel Thermal Velocity Boost Non
Technologie Intel Turbo Boost Max 3.0 Non
Technologie Intel Turbo Boost 2.0
Admissibilité de la plate-forme Intel vPro Non
Technologie Intel Hyper-Threading Oui
Technologie de virtualisation Intel (VT-x) Oui
Technologie de virtualisation Intel pour les E/S réparties (VT-d) Oui
Technologie de virtualisation Intel VT-x avec tables de pagination (Extended Page Tables) Oui
Intel Transactional Synchronization Extensions – New Instructions Non
Intel 64 Oui
Jeux d’instructions 64-bit
Extensions au jeu d’instructions Intel SSE4.1, Intel SSE4.2, Intel AVX2
états d’inactivité Oui
Technologie Intel SpeedStep améliorée Oui
Technologies de surveillance thermique Oui
Technologie Intel de protection de l’identité Oui
Programme Intel Stable Image Platform Non

Sécurité et fiabilité

Nouvelles instructions Intel AES Oui
Secure Key Oui
Intel Software Guard Extensions (Intel SGX) Yes with Intel ME
Intel OS Guard Oui
Technologie Intel Trusted Execution Technology Non
Bit de verrouillage Oui
Intel Boot Guard Oui
